Electric riser recliner for safe transfers

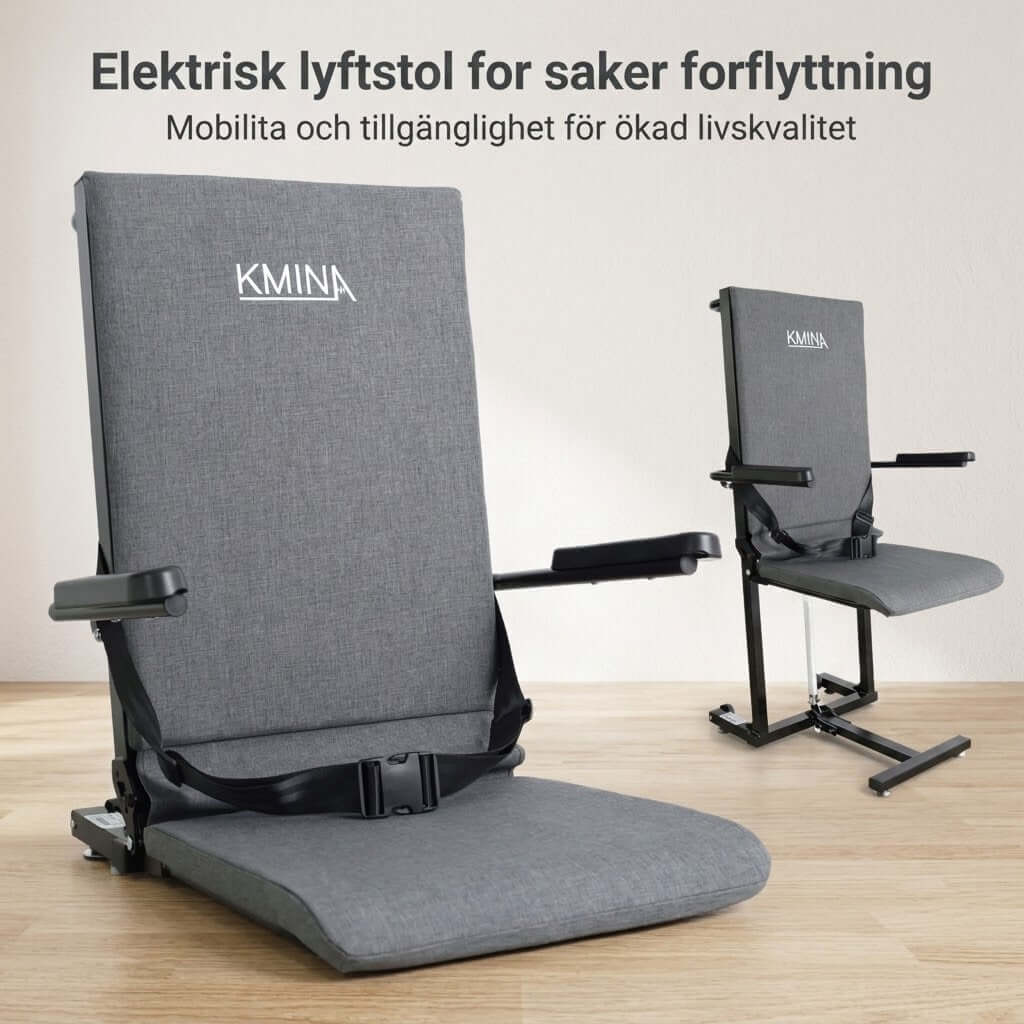

The electric lifting chair is an electric assistive device featuring a stable steel construction and a maximum user weight of 200 kg. The model is designed to raise the user from floor level to a seated height of up to 52 cm. It combines electric raising and lowering with a high backrest, armrests, and a safety belt. The T-shaped base with adjustable supports ensures stable placement on a level, firm, and dry surface.

High capacity and stable construction

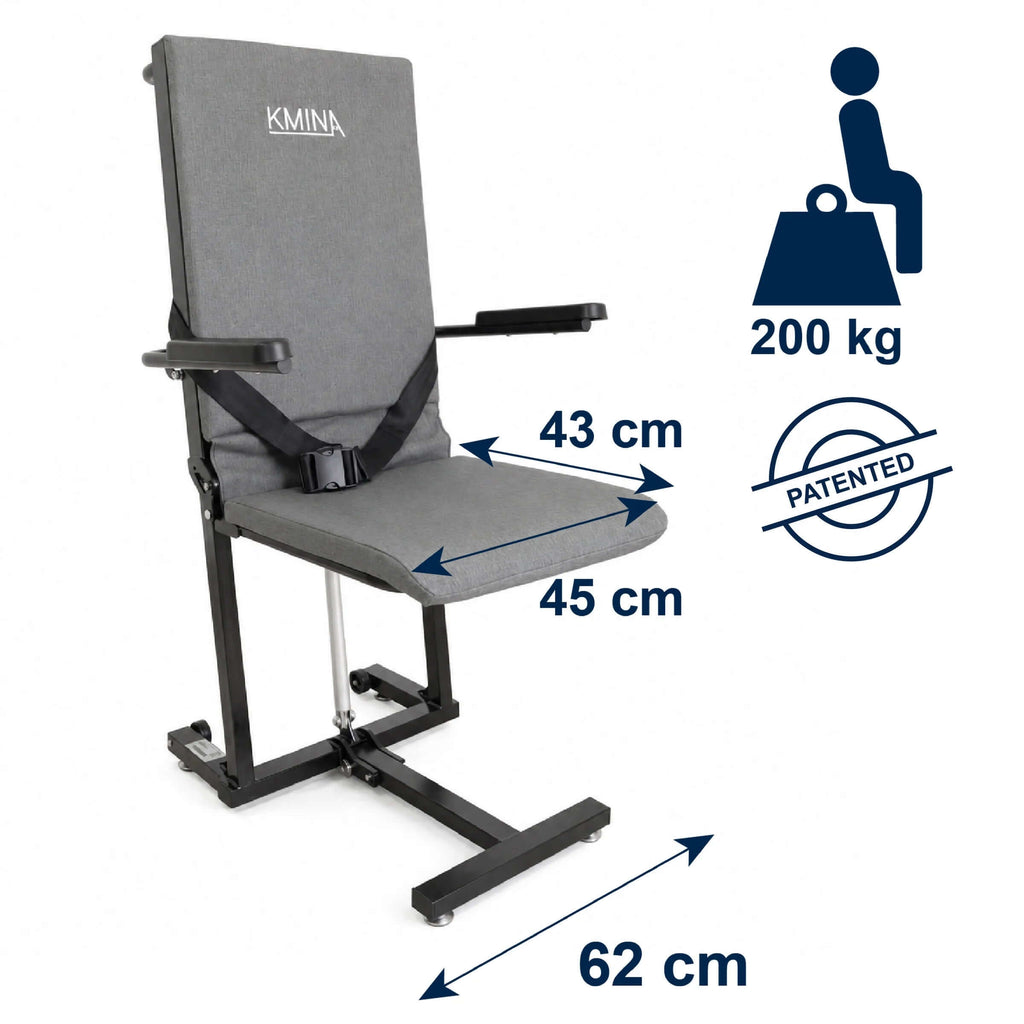

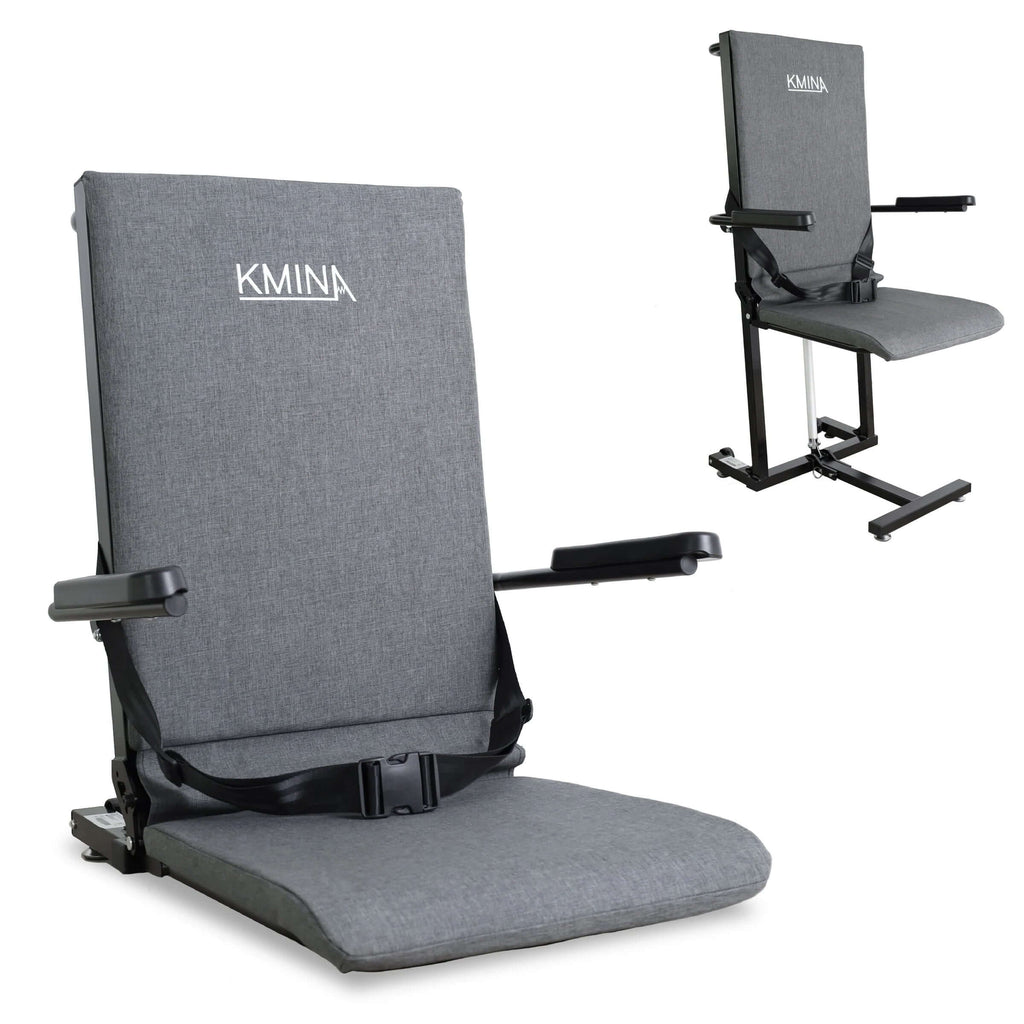

The steel frame is dimensioned for a maximum load of 200 kg. The seat measures 45 × 43 cm and is 5 cm thick, while the backrest is 68 cm high. The combination of backrest, armrests, and safety belt provides support during raising and lowering. The electric lifting chair has a maximum seat height of 52 cm.

Electric raising and lowering

The lifting system is controlled via a hand controller with functions for power, raising, lowering, and emergency stop. The seat can be moved incrementally from floor level to the maximum lifting height of 52 cm. The design allows the electric lifting chair to be used for a controlled ascent to a seated position.

Lithium battery with battery indicator
The battery has a capacity of 21.6 V and 2.6 Ah. A full charge takes approximately 5 hours and provides up to approximately 30 usage cycles. A battery indicator shows the current battery level. The product must not be used while charging.

Foldable design and transport wheels

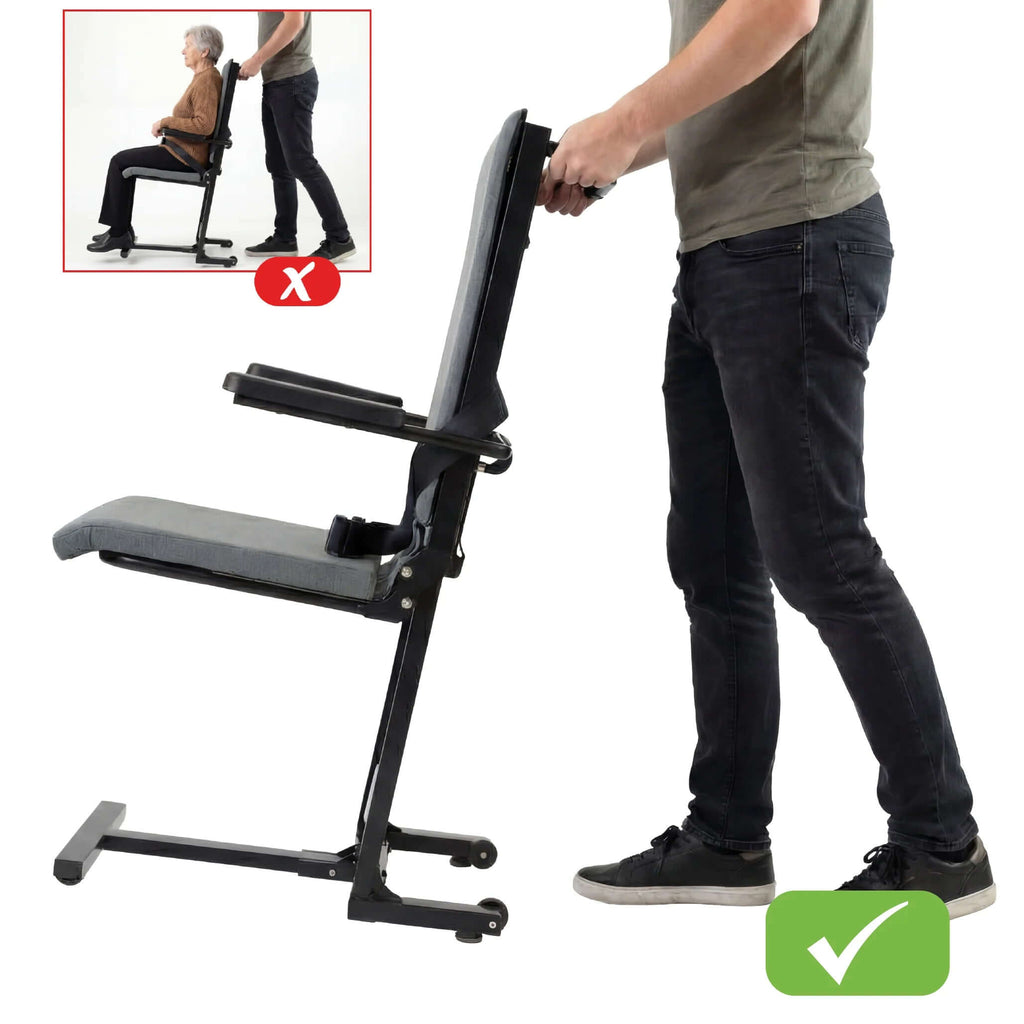

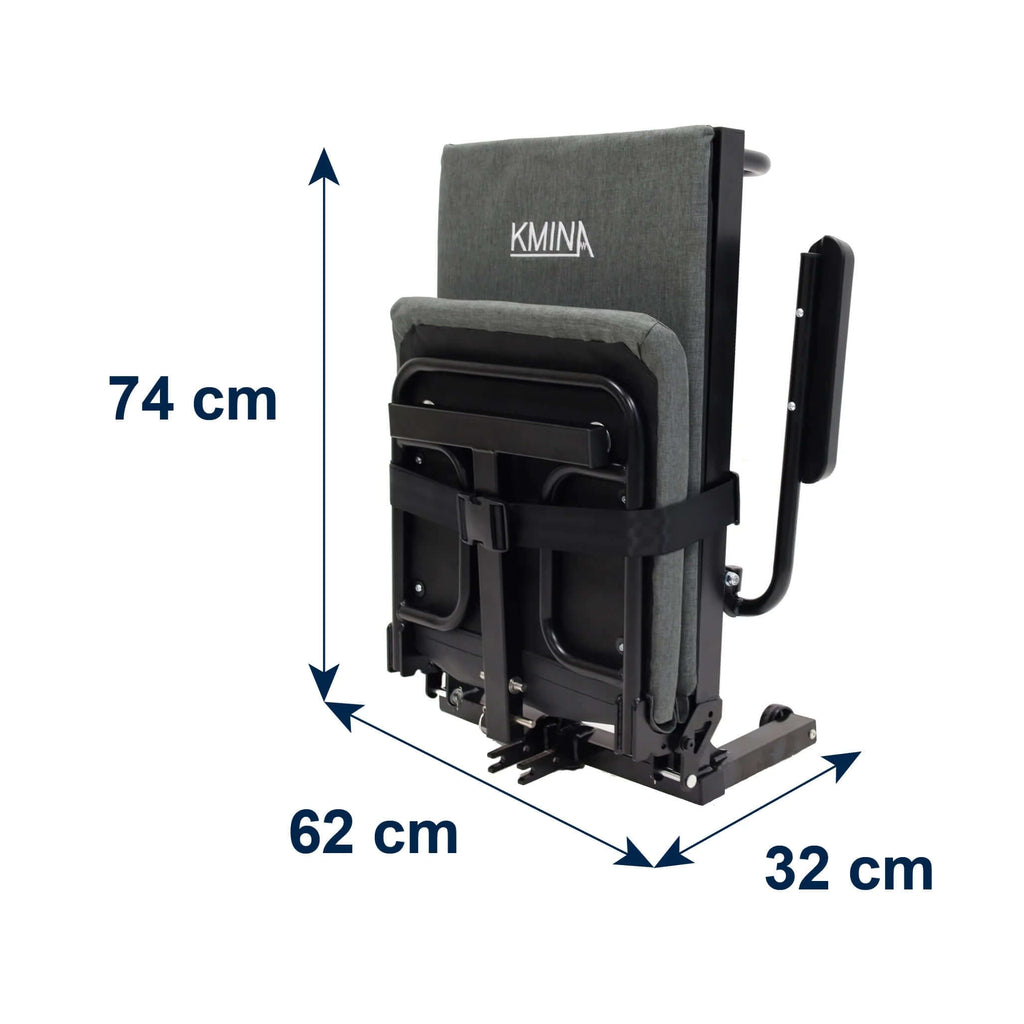

The electric lifting chair is foldable and features small transport wheels for moving the product itself without a user. When folded without the T-base, the unit measures approximately 62 × 74 × 32 cm.

T-shaped stabilizing base

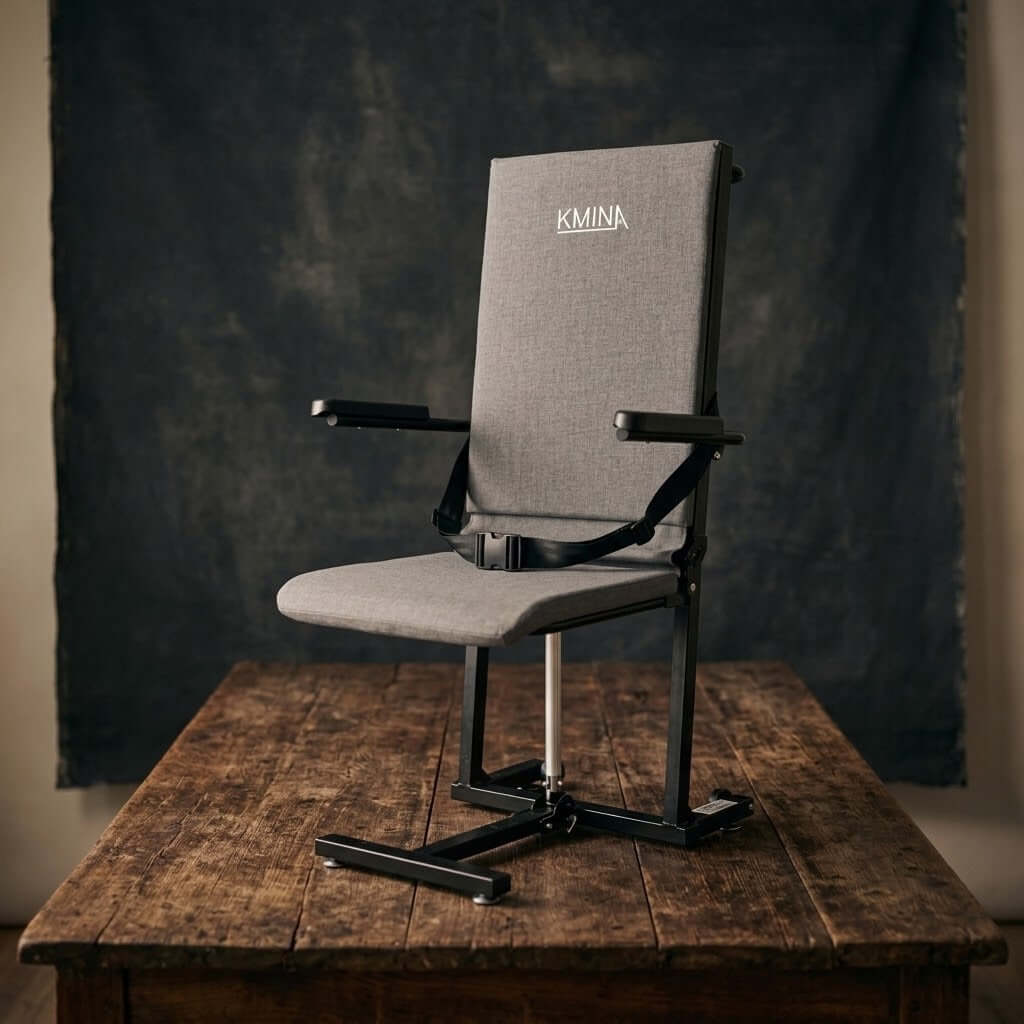

The T-shaped base has adjustable supports and is designed for stable placement. Together with the steel frame, the construction provides a robust foundation during raising and lowering.

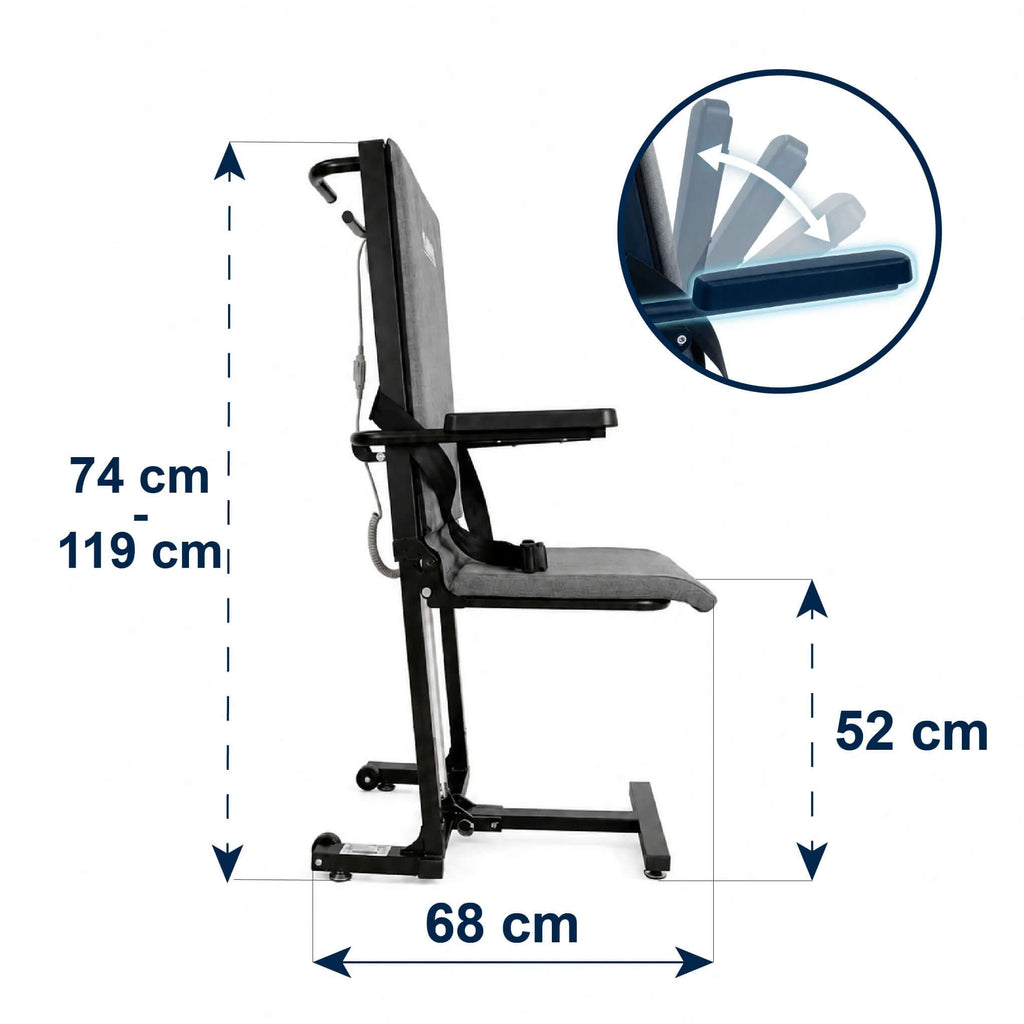

Technical specifications
Total width: 62 cm
Total height: 74–119 cm
Total length: 68 cm
Folded dimensions without T-base: 62 × 74 × 32 cm
Maximum seat height: 52 cm
Seat dimensions: 45 × 43 cm
Seat thickness: 5 cm
Backrest height: 68 cm
Material: Steel and polyester
Color: Gray and black
Net weight: Approximately 20.7 kg
Max user weight: 200 kg
Safety belt: Yes
Armrests: Yes
Stabilizing base: T-shaped base with adjustable supports
Wheel size: 5 × 2 cm
Wheel function: Transport of the product without a user
Lifting system: Electric
Maximum lifting height: 52 cm
Control: Hand controller
Control functions: Power, raising, lowering, and emergency stop
Battery type: Lithium
Battery capacity: 21.6 V / 2.6 Ah
Battery indicator: Yes
Operating voltage: 24 V DC
Full charge time: Approximately 5 hours
Capacity per charge: Up to approximately 30 usage cycles
Operation during charging: No
Foldable: Yes

Two-year warranty
